Product Description

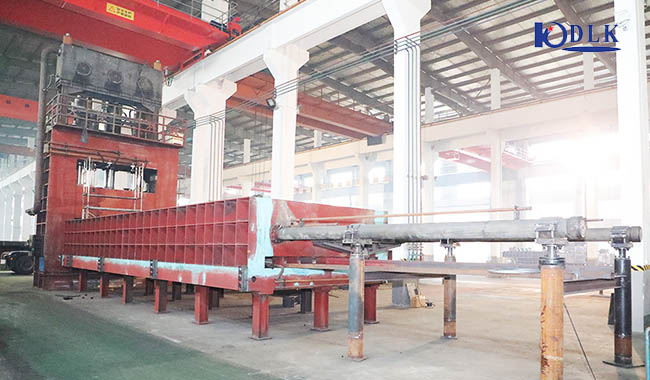

Gantry hydraulic shear machine is compact in structure, and its
body is made of steel plate welded into a box structure, with
stable mechanical properties. The shear cylinder is connected by
ball joint, which improves the stability and service life of the
cylinder, adding the front plate guide device, and improves the
stress condition of the whole machine. It is one of the ideal
equipments in metal recovery industry and casting workshop for
charge processing.
Feature
1. Hydraulic drive, reliable safety performance and convenient
operation.
2. Working blade length: 800mm, 1000mm, 1200mm, 1500mm; the shear
force is 6 grades from 200t to 1250t,suitable for users with
different scales and requirements.
3. Foot screws are not required for installation, and diesel engine
can be used as power in places withoutpower supply.
Application
1. compression and cut scrap metal
2. baling light scrap into blocks
3. cut a variety of bars and section bars
Technical parameters:
Model | Max.Cutting Force(ton) | Press Box Size(mm) | Blade Length(mm) | Production Rate(t/h) | Cutting Frequency (times/min) | Power (KW) |
Q91Y-400 | 400 | 6000*1300*500 | 1400 | 4-7 | 2-4 | 90 |
Factory
Jiangsu Dalongkai Technology Co., Ltd. has been a trusted name in the waste recycling equipment industry
for over a decade as a dedicated Chinese manufacturer of scrap
metal recycling equipment, our flagship products includethe shear
baler, scrap baler, scrap shear, and recycling crane.
In addition to scrap metal processing equipment, we also supply
horizontal baler and vertical baler for compacting plastic, paper,
cardboard, straw, textile and more types of wastes.
Our DLK brand has received critical acclaim both domestically and
overseas. As a trusted waste recycling equipment manufacturer, we
have successfully passed the certification of both the TUV and the
ISO9001 Quality Management System. We are currently in the process
of obtaining the approval of European standards such as CE and UL.
FAQ
1,Q:Can I add my logo on the machines?
A: Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
2,Q:How can i get the after-service?
A: We will send you the spare parts by free if the problems caused
by us.
If it is the men-made problems,we also send the spare parts,but you
should pay.
3,Q:Do you have inspection procedures for machines?
A:100% self-inspection before packing
4,Q:Can I have a visit to your factory before the order?
A:Sure,welcome to visit our factory.
Here is our factory address:No.29, Panlongshan Road, Jiangyin City,
Jiangsu Province, China.
5,Q: Can we order one set machine?
A:Yes, you can.
