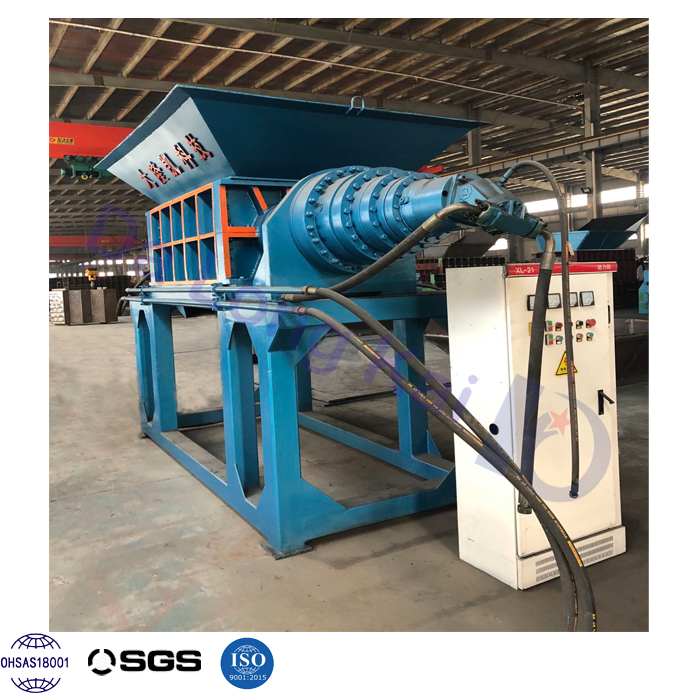

DS DOUBLE-SHAFT SHREDDER

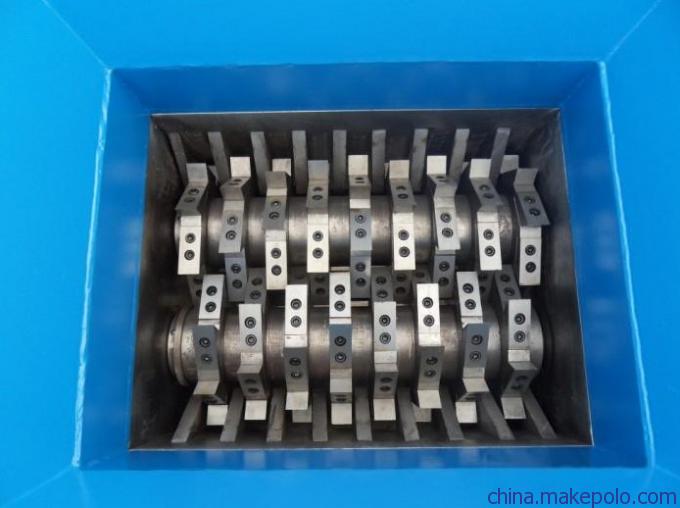

DS double-shaft shredder is mainly composed of knife roller
(spindle +blade), fixed knife, shredder box, box support, feed
system, power system and electrical control system. This shredder
is widely used because of its low rotating speed and large torque,
which is suitable for crushing hard or large materials. Such as
waste paper, waste wood, garden waste, kitchen waste, medical
waste, waste tires, waste plastic, waste household appliances,
waste drum, iron sheet and so on.
Service
1) One year guarantee and lifelong maintenance.
2) Spare parts: supply one set of spare parts for free, tool box,
operation book.
3) Any problem, you can call us directly.
4) Global Service granteed in 3 Days
5) Extra Charges if you need service person stay locally
Features
1. Blade adopts high alloy 42CrMo material, which has high
strength, good toughness and is not easy to break.
2. The main electrical components are Siemens and Schneider brands.
3. Automatic overload protection to avoid machine overload and jam.
4. High torque, low speed, low noise, high efficiency.
TECHNICAL SPECIFICATION:
| Model | Power
(kw) | Size of crushing cavity(mm) | Blade thickness(mm) | Number of blades(pcs) | Weight of machine(kg) |
| DSD60 | 5.5+5.5 | 600*530 | 20 | 30 | 2100 |
| DSD80 | 7.5+7.5 | 800*530 | 20 | 40 | 2350 |
| Model | Power
(kw) | Size of crushing cavity(mm) | Blade thickness (mm) | Number of blades(pcs) | Weight of machine(kg) |
| DSF80 | 15+15 | 800*800 | 40 | 20 | 4400 |
| DSF100 | 18.5+18.5 | 1000*800 | 40 | 25 | 4550 |
| DSF120 | 22+22 | 1200*800 | 40 | 30 | 5150 |
| Model | Power
(kw) | Size of crushing cavity(mm) | Blade thickness (mm) | Number of blades(pcs) | Weight of machine(kg) |
| DSG100 | 22+22 | 1000*980 | 40 | 25 | 9100 |
| DSG130 | 37+37 | 1300*980 | 40 | 32 | 12000 |
| DSG160 | 45+45 | 1600*980 | 50 | 32 | 14200 |
| Model | Power
(kw) | Size of crushing cavity(mm) | Blade thickness (mm) | Number of blades(pcs) | Weight of machine(kg) |
| DSK150 | 55+55 | 1500*1520 | 75 | 20 | 32200 |
| DSK180 | 75+75 | 1800*1520 | 75 | 24 | 35000 |
| DSK225 | 90+90 | 2250*1520 | 75 | 30 | 42600 |
| DSK250 | 110+110 | 2500*1520 | 75 | 33 | 48500 |
