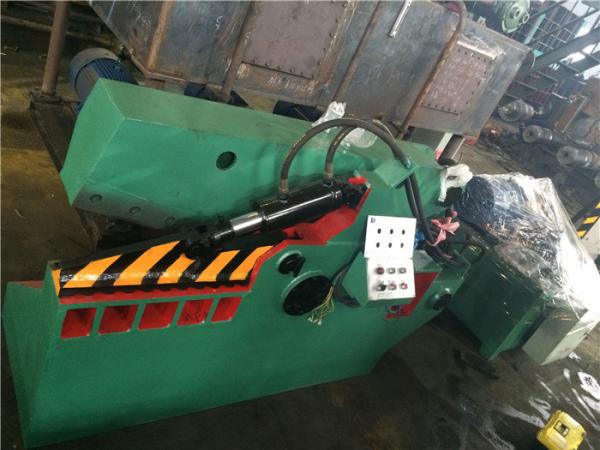

High Security Alligator Metal Shear Recycling For Cold Shear
Section Steel
Applications:
Such machinery is applicable to metal reclamation plants, scraped
car dismantle sites , refining &casting industry, and it
conducts cold-state shear for various structural steel and metal
framework to produce qualified charging.
Features:
1. Such series employ hydraulic drive ,featuring reliable safety
performance and convenient operation.
2. Length of working edge:
400mm,600mm,700mm,800mm,1000mm,1200mm,1600mm,1800mm, and the
shearing force covers11 grades from 63t to 600t, which can meet
different requirements of users.
3. Foot screws may not be used for installation and a diesel engine
can be adopte in case of unavailability of power supply.
4. Hydraulic drive, simple operation & easy maintenance.
5. Options for different force & blade length.
6. No footing bolts needed, diesel engine optional for power.
Technical parameters:
No. | Model | Shearing force | Max.opening | Blade Length | Max.cutting material | Power |
1 | Q43-630 | 63t | 240mm | 600mm | 30*30mm ¢35 | 7.5KW |
2 | Q43-800 | 80t | 280mm | 800mm | 35*35mm ¢40 | 7.5KW |
3 | Q43-1000 | 100t | 320mm | 800mm | 40*40mm ¢45 | 11 KW |
4 | Q43-1200 | 120t | 270mm | 600mm | 45*45mm ¢50 | 15 KW |
5 | Q43-1600 | 160t | 320mm | 800mm | 55*55mm ¢63 | 18.5 KW |
6 | Q43-2000 | 200t | 380mm | 1000mm | 65*65mm ¢75 | 22 KW |
7 | Q43-2500 | 250t | 450mm | 1000mm | 70*70mm ¢80 | 2*15 KW |
8 | Q43-3150 | 315t | 450mm/520mm | 1000mm/1200mm | 80*80mm ¢90 | 2*22 KW |
9 | Q43-4000 | 400t | 660mm | 1200mm | 90*90mm ¢100 | 2*30 KW |
10 | Q43-5000 | 500t | 690mm | 1500mm | 90*90mm ¢100 | 2*37 KW |
11 | Q43-6000 | 600t | 860mm | 1600mm | 105*105mm ¢120 | 2*45 KW |
