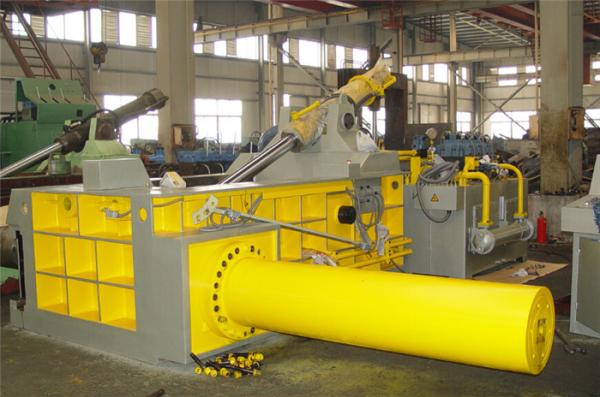

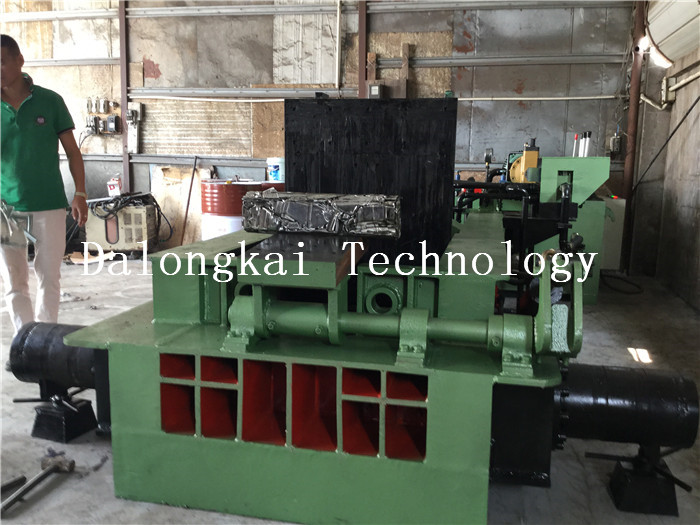

Push - out Type , Hydraulic Baling Press For Pressing Scrap Metal ,
Hydraulic Drive
Technical parameters
Power system | Rated Speed | Rated Power | Power Spec. | Lid cyl. Force | Side Door cyl. Force | Main Pressure cyl. Force |
Motor ,2 sets | 1470 rpm | 22 kw | 3ph,50/60 HZ | 63 Ton | 2*100Ton | 200 Ton |
|
|
|
|
|
|
|
Small Door cyl. Force | Hydraulic System Pressure | Idle Cycle Time | Hydraulic System | Rated Displacement | Operating System
| Max. Operating Pressure
|
50 ton | 25mpa | APPROX. 100 Sec | Pump, 2 ets | 80 mr/r | 1. PLC Operation 2. Manual valve operation | 31. 5 Mpa |
|
|
|
|
|
|
|
Standard Operation | Optional Configuration |
A3 Steel Liners , Surface heat Treatment | Cutting Blades and teeth(2 sides) | Loading Hopper Cooler/ Heater | Diesel / Diesel Generator for power |
Company Profile
Jiangsu Dalongkai Technology Co., Ltd is the professional
manufacturer who is specialized in producing the balers, metal
shears, metal scrap briquette machines, loose material baler and
other hydraulic machinery. We provide both standard and customized
design in large range of different machines. They are widely
applied in industries of metal smelting, textile, fiber,
paper-making, waste recycle, automobile, metal processing and so
on.
Corporate Mission
We will enter into everyshere in the world.
Make all customers be proud of our products.
Trying to be the leader of our business line.
Company Culture
To become the best employees, create high quality products, creat
first-class business
Strengthen management, improve service, brand first, quality first
Faith based, innovation, common development
Introduction
Y81 series hydraulic metal balers press the leftover of all kinds
of metal material (steel shavings ,scrap steel, scrap copper ,scrap
aluminum,scrap stainless steel ) to be qualified furnace in the
shape of cuboid ,octagon ,cylinder and so on ,which not only
decreases the freight and smelting costs ,but also increase the
speed of casting .This machine is mainly applicable to steel mills
,recycling industries and ferrous metallurgical works .
Y81 series metal hydraulic baler is capable of extruding various
metal leftover materials,steel parting ,as square column, cylinder, octagon body and other sharps,in a bid
to reduce transportation costs,and increase transportation speed. Such baler is mainly used
in steel plants,nonferrous and ferrousmetal refining industry.automatic control operation as options.The discharging types fall
into turning over, push out, forward out and manual lifting. It is unnecessary
to fix foot screws and a diesel engine can be usedin case of power supply unavailability. The extrusion force ranges
from 63t to 400t, totaling 10 grades for customers’ selection,and productivity being from
4t/shift to 40/shift.
