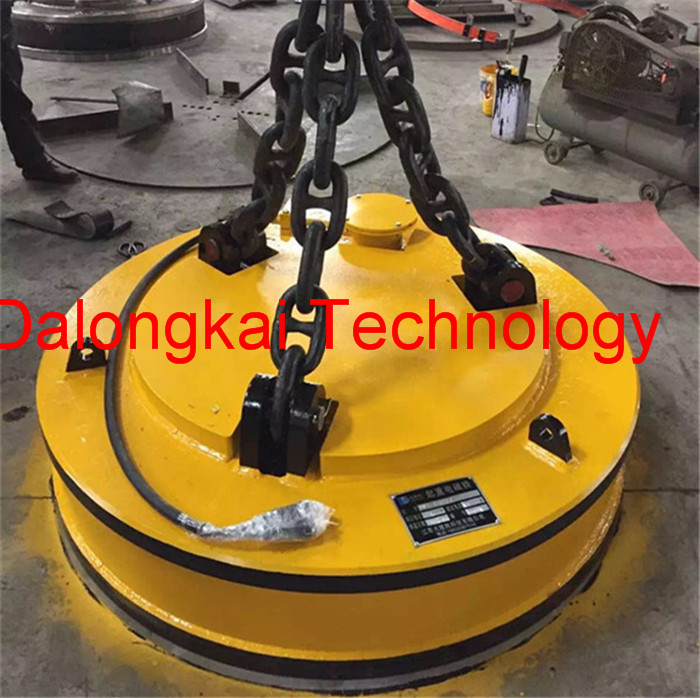

lifting electromagnet with big size
| No. | Model | Power(KW) | Lifting Capacity ( scrap steel volume≥1.2T/M3) | machine weight(KG) |
| 1 | MW5-70L/1 | 3.2 | 100-120 | 500 |
| 2 | MW5-90L/1 | 5.6 | 200-250 | 7800 |
| 3 | MW5-110L/1 | 7.0 | 400-450 | 1250 |
| 4 | MW5-130L/1 | 11.9 | 600-700 | 2050 |
| 5 | MW5-150L/1 | 15.6 | 900-1100 | 2700 |
| 6 | MW5-165L/1 | 19.8 | 1100-1350 | 3400 |
| 7 | MW5-180L/1 | 22.4 | 1350-1600 | 4100 |
| 8 | MW5-185L/1 | 24.7 | 1500-1800 | 4500 |
| 9 | MW5-210L/1 | 27.3 | 1600-2200 | 6800 |
| 10 | MW5-240L/1 | 32.6 | 2200-2850 | 9000 |

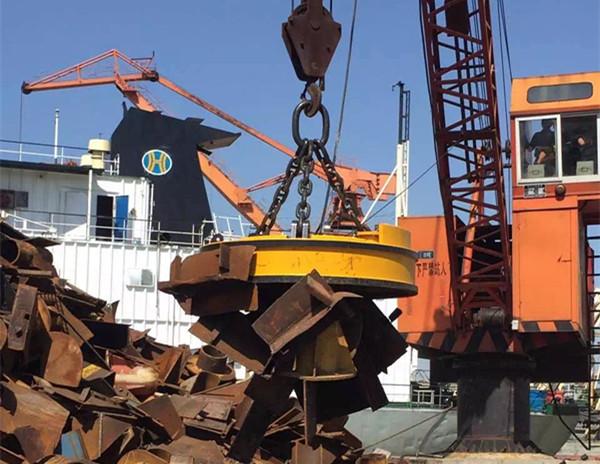

MW electromagnet is widely used in smelt, casting and
transportation department. It is a tool for conducting magnetic
objects for carrying steel plate, steel casting , steel ingot,
ingot, scrap iron and steel.
It has safe and reliable use.
Care and Maintenanc
1, Should regularly check whether there are cracks in the solenoid
enclosure.
If it is found that cracks should be welded in time.
2, Each class before use to check whether the normal connectors and
cables
Found abnormal should be processed in a timely manner
3, The chain and a pin used for a long time, found that more than
10% wear should be replaced
4, After long-term use, the electromagnet is found to decrease the
suction, and the DC resistance of the coil should be checked. If
the rated value is not reached, the coil of the electromagnet
should be replaced.
5, After long-term use, the insulation resistance of the
electromagnet will drop
Please use 500V shake table to measure the thermal state of the
electromagnet insulation resistance, should be more than 1M or
more, or should be repaired in time
6, Magnet for many years after the use of magnetic pole ground. If
the height of magnetic and non-magnetic plate h less than 10 mm,
should replace the pole
