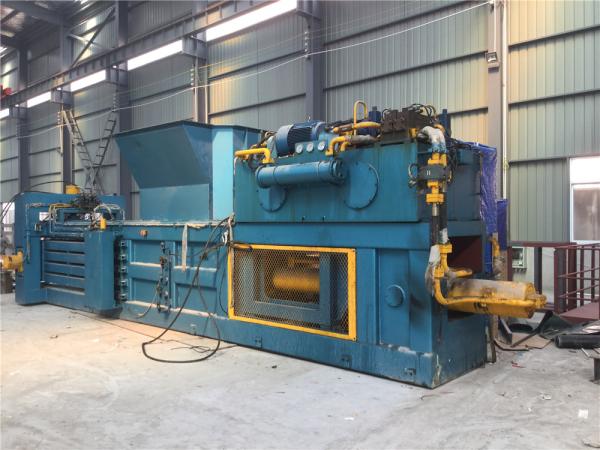

PLC Control , HPA80 Series Horizontal Baler With Automatic
Strapping
Corporate Mission
1. We will enter into everyshere in the world.
2. Make all customers be proud of our products.
3. Trying to be the leader of our business line.
Applications
HPA series of horizontal balers are applied for baling & automatic
strapping of paper, cardboard
(carton), newspaper, magazine, straw, PET bottle, plastic film &
crate,etc.
Features
1. PLC control combined with window monitoring of the
human-computer interface(touch screen),synchronous action
instruction chart combined with the error warning, the bale length
available for adjustment.
2. Floating convergent mouth design in three directions(left, right
and upward), beneficial to automatic pressure distribution in four
sides, widely used for baling different materials.
3. Push cylinder and head connected by the sphere structure with
good reliability and long working life of oil seal.
4. Decentralized shears equipment at the feeding inlet with high
shearing efficiency.
5. Automatic belting, speeding up baling.
6. Low-noise hydraulic circuit design with high efficiency and low
trouble frequency.
7. Simple installation without base.
Model | Main Cyl, Force(mm) | Hopper Size(L*W)(mm) | Bale Size(W*H)(mm) | Bale Weight(kg) | Motor(KW) |
HPA50 | 50 | 900*700 | 700*700 | 200-280 | 22+5.5 |
HPA63 | 63 | 1600*700 | 700*700 | 230-310 | 37+5.5 |
HPA80A | 80 | 1600*720 | 720*1100 | 400-530 | 45+7.5 |
HPA80B | 80 | 1600*800 | 800*1100 | 430-580 | 45+7.5 |
HPA80C | 80 | 1450*1100 | 1100*720 | 400-530 | 45+7.5 |
HPA100A | 100 | 1600*1000 | 1000*1100 | 670-1050 | 55+15 |
HPA100B | 100 | 2200*1100 | 1100*1100 | 720-1150 | 55+15 |
HPA125A | 125 | 2200*1100 | 1100*1100 | 720-1150 | 74+7.5 |
HPA125B | 125 | 2200*1100 | 1100*1250 | 790-1250 | 74+7.5 |
HPA150A | 150 | 2200*1100 | 1100*1100 | 760-1280 | 90+7.5 |
HPA150B | 150 | 2200*1100 | 1100*1250 | 830-1400 | 90+7.5 |
HPA180 | 180 | 2200*1100 | 1100*1100 | 810-1350 | 180+7.5 |
