Manual Valve Control Scrap Baler Machine / Hydraulic Scrap Baling Press

Ask Lasest Price
Brand Name :	DLK
Model Number :	Y81 - 200
Certification :	ISO9001
Payment Terms :	L/C, T/T
Supply Ability :	10 sets /month
Delivery Time :	30 days
Price :	Negotiation

Add to Cart

Product Details
Company Profile

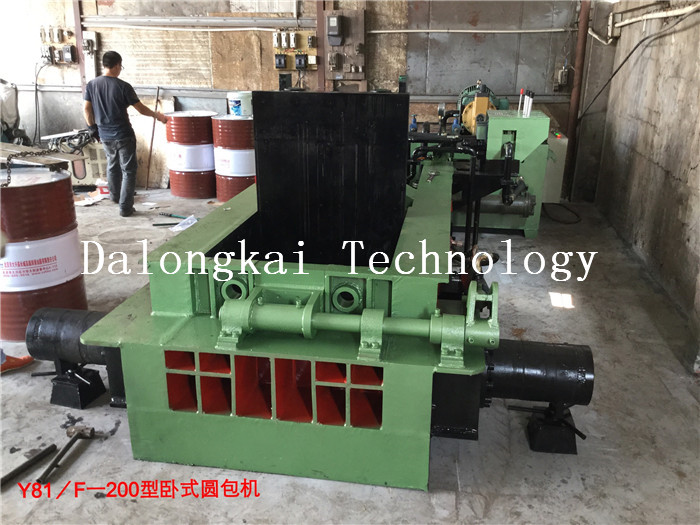

Manual Valve Control Scrap Baler Machine / Hydraulic Scrap Baling Press

Hydraulic Driven Manual Valve Control Cuboid Block Y81 - 200 Baling Press

Specifications

1. Hydraulic metal baler
2. Hydraulic drive ,manual valve operation or PLC control
3. Waste metal baler machine
4. Bale-discharging :turn-out ,push-out, forward-out
5. Metal press baler machine

Introduction

Y81 series hydraulic metal packaging can be all kinds of metal scrap (scrap, shavings, scrap steel, aluminum, copper, stainless steel scrap, scrap cars, etc.) squeezed into an octagonal shape, the shape of a cylinder and other qualified furnace, can reduce the transportation and smelting costs, but also improve the rate of investment furnace. This series baler is mainly used in steel mills, recycling industries, as well as nonferrous metal, ferrous metal smelting industry.

Features

1. All models use hydraulic drive, or manual or PLC control.

2. variety of models to choose from: different pressures, material box size, mass, shapes and sizes.

3. Bale-discharging: "turn-out" package, and "push-out", "forward-out" discharging can be choosed.

4. where no power supply can be powered with diesel engine

Technical Parameters

Power System	Rated Speed	Rated Power	Power Spec.	Lid cyl. Force		Side Pressure cyl. Force		Main Pressure cyl. Force
Motor	1650 rpm	kw/set	3ph,50/60 HZ	72 Ton		125Ton		200 Ton

Small Door cyl. Force	Hydraulic System Pressure	Idle Cycle Time	Hydraulic System	Rated Displacement		Max. Operating Pressure		Operating System
11 Ton	55 Mpa	APPROX. 90 sec	Pump	70 mr/r (/set)		31.5 Mpa		Manual Valve Operation; PLC Operation

Standard Operation			Optional Configuration
A3 Steel Liners , Surface Heat Treatment			Cutting Blades and Teeth(2 sides)		Loading Hopper Cooler / Heater		Diesel / Diesel Generator for Power
