3PH 50Hz Gantry Shear / Scrap Metal Press 180 - 450KW 380 Voltage Available

Ask Lasest Price
Brand Name :	DLK
Model Number :	Q91Y400~Q91Y1250
Certification :	ISO9001
Price :	Negotiation
Payment Terms :	30% T/T In Advance, L/C
Supply Ability :	2 sets /month
Delivery Time :	80-90 days

Add to Cart

Product Details
Company Profile

3PH 50Hz Gantry Shear / Scrap Metal Press 180 - 450KW 380 Voltage Available

380V / 3PH 50Hz Hydraulic Metal Shear 180 - 450KW Large Machine

Introduction

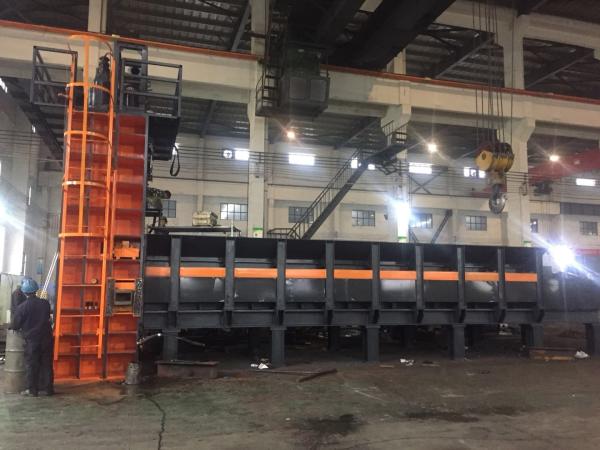

Q91Y heavy shear are applied in cutting variety if scrap metal. And the shears are suitable cutting thin and soft. mateials After squeezed two or three times by closing lid and lateral pressure head, scrap metal are compressed into blocks. Eventually being cut or crushed directly to become qualified scraps.The shear machine is mainly used for: compression and cut scrap metal ; cut a variety of bars and section bars ; amount of scrap metal are compressed together into one long stripped bales baling light scrap into blocks; scrap car squeezed into bales.

Technical parameters

Model	Max.Cutting Force(ton)	Press Box Size(mm)	Blade Length(mm)	Production Rate(tons)	Cutting Frequency(times/min)	Main Motor(KW)
Q91Y-400	400	500020001100	900	8.0-10.0	4.5	2*90
Q91Y-800	800	500020001400	900	12.0-25.0	4.5	4*90
Q91Y-1000	1000	600020001400	1000	15.0-28.0	4.5	5*90
Q91Y-1250	1250	700020001400	1000	18.0-30.0	4.5	6*90
