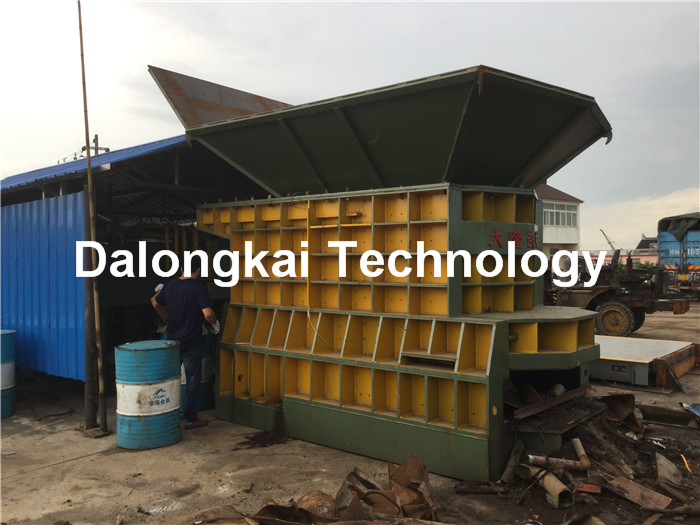

1600mm Trapeziform Blade Scrap Metal Shear WS - 6300 Automatic
Hydraulic Drive
Applications
The Scrap Metal Shearing machine , which is widely used in recycling companies and ferrous &
non-ferrous metal smelting industry , can help to shear metal
scrap(steel parings, waste steel, waste copper & aluminum, waste
stainless steel, scrap from discarded automobiles)
Specifications
1. For cutting scrap metal
2. No footing bolts needed
3. Diesel engine can be equipped for power
Advantages
The advantages of the container shearing machine as compared to
common guillotine shears can be summarised as follows:
1. Low specific investment and running costs; continual loading of
the shear in the feed hopper with simultaneous ejection of the cut
scrap
2. Shear control carried out by grabber crane operator no
additional operator needed, self-enclosed operation with integrated
diesel engine
3. Collection and transport by towing vehicle for transport
containers or flat bed trailer
4. Efficient one-man loading, cutting and removal from one or
several container shears using a digger
5. Little space required as compared to stationary shears
6. No assembly and foundation costs are needed for operation
7. Thanks to the horizontal cut with a large guided blade carriage
there is little wear
the forces working on the blade carriage always tend towards the
centre, avoiding twisting forces
Feature
1. High security.
When the machine is in the operating state, these wastes in the
work bin will not splash out. Horizontal structure: feeding can be
manual or automatic with conveyor
2. Removable, manual belting.
The removable machine is able to work anywhere, which really cuts
transportation costs for customers.
3. High productivity, saving labor costs.
This machine equipped with suction pad is completely automatic, as
long as one person can finish all operations.PLC control,
push-button operation ,safe & reliable
Technical Specificarions | Remark |
Shear cylinder
| model | YG360/250-1000 |
2 sets
|
Nominal pressure | 3150KN*2
| Trip
| 800MM
|
press cylinder | model | YG280/220-800 | 1 set |
Nominal pressure | 120KN | Trip | 800MM |
motor | model | Y280M-6 | Power | 45kw |
|
speed
| 980 R / MIN | Quantity | 2 sets |
oil pump | Model | HY250Y-RP | Pressure | 31.5 mpa |
|
Oil flow
| 250 ml / r | Quantity | 2 sets |
