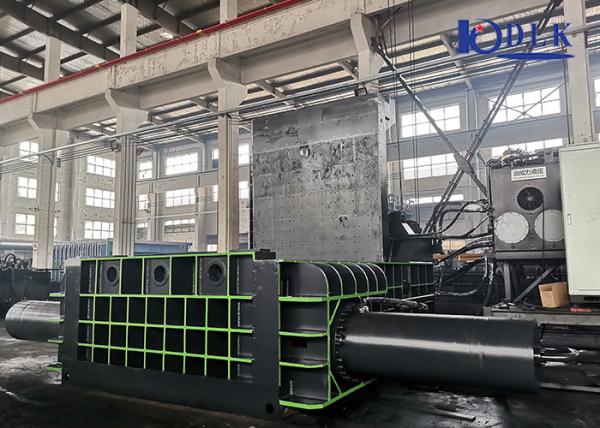

Introduction of the metal baler
This Y81 series 630 ton scrap metal baler can be used for baling
and compressing all kinds of scrap metal. According to the type,
size, thickness, etc. of the waste, the matching master cylinder
pressure and bin size can be customized. This scrap metal baler
with a master cylinder pressure of 630 tons is a medium-sized
baler, the size of the material box is 3500*3000*1300 mm, the
cross-sectional size of the block is 600*600 mm, the block
structure is compact, and the density is high. Packaging materials
are also relatively wide, scrap copper, scrap iron, scrap stainless
steel, scrap aluminum can be processed. The baler adopts PLC
control system and is equipped with a remote control, which can be
operated by one person from a long distance. Block shape and size
can be customized according to customer needs.
Features of the baler
1. All models are hydraulically driven and can be manually operated
or PLC controlled automatically.
2. The package delivery methods include turning package, side
pushing package, forward pushing package, manual picking, etc.
3. Where there is no power supply, diesel engine can be used as
power.
4. The size of the feeding box and the shape and size of the bale
can be designed and customized according to the user's raw material
specifications.
Specification of the baling machine
| 1 | Main oil cylinder | Model | YG560/400 | Qty. | 2pc |
| Normal force | 6300KN | Stroke | 1220mm |
| 2 | Side pressure cylinder | Model | YG400/280 | Qty. | 2pc |
| Normal force | 3150kN*2 | Stroke | 2970mm |
| 3 | Turning bag cylinder | Model | YG260/180 | Qty. | 2pc |
| Normal force | 1300kN | Stroke | 2150mm |
| 4 | Door cover cylinder | Model | YG220/120 | Qty. | 3pc |
| Normal force | 900kN | Stroke | 100mm |
| 5 | Size of feed box | 3500*3000*1300 mm |
| 6 | Size of bale | 600*600 mm |
| 7 | Operation method | Hand-in-one, remote control operation |
| 8 | Outlet method | Mechanical grab bale |
Notice:
1. The above technical parameters are for reference only, we
reserve the right to adjust according to actual needs.
2. Non-standard models of press box size and bundle size can be
customized according to customer needs.
Applications of the baler
Y81 series hydraulic metal scrap balers is applicable in steel
plants, recycling companies, ferrous &non-ferrous smelting
industry to press metal scraps (steel, copper, aluminum, stainless
steel, discarded automobiles) into acceptable furnace charges
(shapes: cuboid, cylinder or octagon).
Company Profile
Dalongkai Technology Co., Ltd. is a manufacturer of metal recycling
machinery, the main products include: metal balers, gantry shears,
horizontal shears, crocodile shears, briquetting machines and scrap
crushers. We can also provide rebar pelletizers, shear balers,
container pushers, etc. With so many types of recycling machinery,
there are many options for you. Our scrap metal recycling machines
handle your metal scrap perfectly, increasing your profits and
reducing your costs. According to customer needs, our machines can
also be installed with a remote monitoring system, which can
identify machine failure problems and assist customers in solving
them.
