Product Description
This Y81 series hydraulic scrap metal baler is customized and
produced according to customer needs, and is mainly used to
compress waste aluminum cans into rectangular blocks.
Technical Parameters
| 1 | Model | Y81CF-125 |
| 2 | Main cylinder force | 125 Ton |
| 3 | Material box specifications | 1200*700*600 mm |
| 4 | Size of bale | 300*300 mm |
| 5 | Bulk density (steel) | ≤1900/m³ |
| 6 | Capacity | About 7-15 bale/hr |
| 7 | Power | 15 KW |
| 8 | Power Specifications | 380V/3P 50Hz |
The parameters in the above table are for reference only.

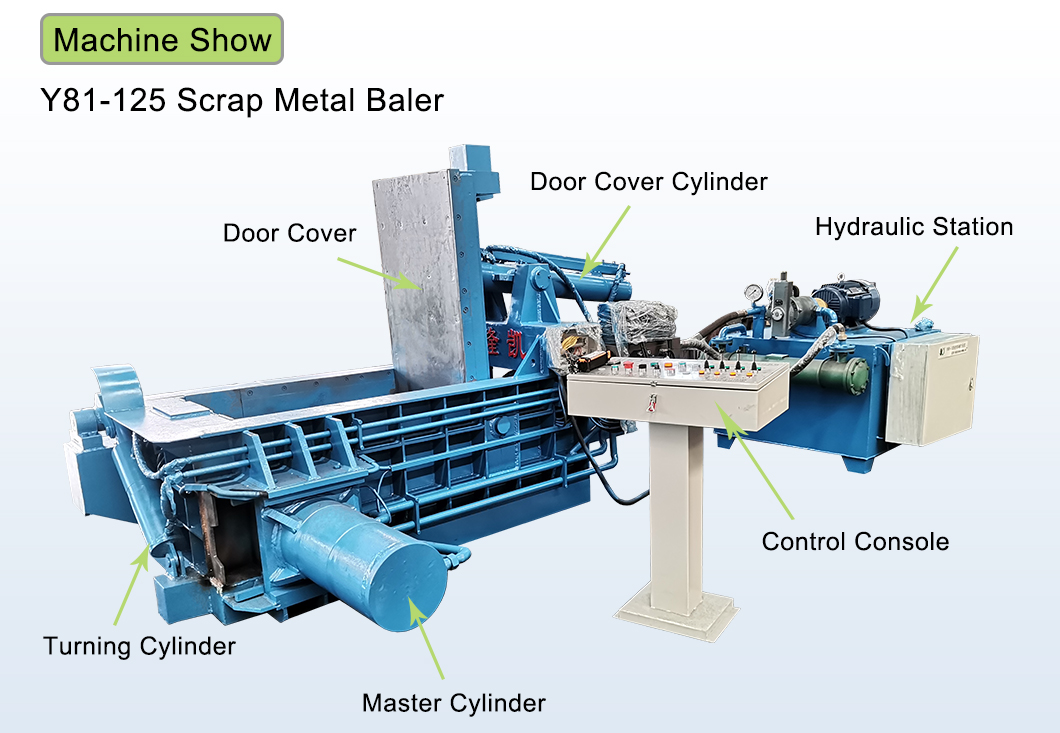

Details of the baler
1. Door cover:A wear-resistant plate is installed on the inner side
of the door cover of the baler, which greatly increases the service
life of the door cover. There are blades on both sides of the door
cover of the baler, which can cut off the excess material in the
material box.
2. Motor:The motor can be used as a common motor, or a servo motor
can be selected according to customer needs.
3. Cooling System:The cooling system of the hydraulic station
adopts a tube cooler.
Application
The baler Can Compressing Machinery Scrap Iron Aluminum Metal Baler
is used to compress scrap metal(steel, copper, aluminum,stainless
steel, etc)into metal block or metal bale. The purpose is to save
the transportation cost or reduce the raw material loss when
smelting.
Shipping
FAQ
Q1 : Can I add my logo on the machines?
A : Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
Q2 : How can i get the after-service?
A : We will send you the spare parts by free if the problems caused by
us.
If it is the men-made problems, we also send the spare parts, but
you should pay.
Q3 : Do you have inspection procedures for machines?
A : 100% self-inspection before packing
Q4 : Can I have a visit to your factory before the order?
A : Sure, welcome to visit our factory.
Here is our factory address:No.29, Panlongshan Road, Jiangyin City,
Jiangsu Province, China.
Q5 : Can we order one set machine?
A : Yes, you can.
