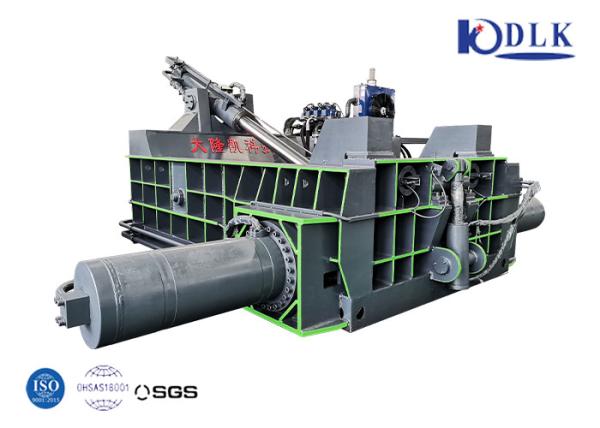

Y81 Hydraulic Scrap Metal Shear Baler Machine For Ferrous Metal
Smelting Industry
Introduction
Y81 series hydraulic metal balers can be widely used in large and
medium-sized metal resource recycling plants and metal products
manufacturing plants. Metal balers use the multiple strengths of
their hydraulic system to compress irregularly shaped and sized
metal scrap into compact bales. Once packed, these metal bales are
easy to transport and store, saving a lot of land occupation.
Technical Specification
| Model | Y81-125 | Y81-160 | Y81-200 | Y81-250 |
| Pressure(KN) | 1250 | 1600 | 2000 | 2500 |
| Press Box Size(mm) | 1200*700*600 | 1600*1000*800 | 1800*1400*800 | 250*2000*1000 |
Output Compressed Size (mm) | 300*300 | 400*400 | 260/300 Octagon | 500*500 |
| Bale Weight(kg) | 50-70 | 100-150 | 50-100 | 300-500 |
| Power(KW) | 15 | 22 | 37 or 44 | 60 |
Note: 1.The price depends on your capacity; 2.Working voltage:380±10V(415V,440V also can be customized); |
Features
1. We have installed the guard board on the gate make the machine
stronger and more wear-resistant extend the machine service life.
2. We use blades on the door sides and feed box sides.The blades
can cut the extra scrap when machine working better to protect the
machine.
3. Use the high pressure soft oil pipe,which has better salability,
better anti-vibration, better resistance to leaking.
Machine Detail
Application
The scrap metal baler machine can press various metal scraps, steel
shavings, scrap steel, scrap aluminum, scrap copper, etc. into
qualified shapes such as cubes, cylinders, octagons, etc. to reduce
the transportation and smelting costs of metal scraps materials.
Main configuration of the hydraulic metal baler:
1. High pressure oil pump
2. Motor
3. Low-voltage electrical component
4. Limit switch
5. Cylinder seal
6. Electro-hydraulic valve
7. Overflow valve
Company Profile
Jiangsu Dalongkai Technology Co., Ltd. has been a trusted name in
the waste recycling equipment industry for over a decade as a
dedicated Chinese manufacturer of scrap metal recycling equipment,
our flagship products includethe shear baler, scrap baler, scrap
shear, and recycling crane.
Guarantee and after-sale service
1. 12 months guarantee for whole machine
2. 24 hours technical support by email
3. Calling or door to door service
4. User manual and detailed video
Certifications
FAQ
Q1:Are you a manufacturer, trading company or a third party?
A:We are a professional manufacturer of large and medium-sized
hydraulic machinery and equipment in China, and also one of the
production bases of metal hydraulic baler and metal shearing
machine.
Q2:What is your minimum order quantity, can you send me samples?
A:Our minimum quantity is 1 set, as our product is machinery
equipment, it’s difficult to send you samples, however,we can send
you catalog.
Q3: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Our factory address: 29# Panlongshan Road,Jiangyin city,Jiangsu
province,214429, P.R China
Our factory is near Shanghai Pudong Airport.We can pick you up in
the airport.
Hotel booking service is available .
Q4:As the shipping period will take long time, how can you make
sure the machine won’t be broken?
A:Our machine is film wrapped, to make sure the machine can be
delivered to our customer smoothly, we will use the steel wire to
fix the machine with the container.
Q5:How to Install ?
A:a.For vertical baler machines, no need to install. This kind of
machine is exported by complete unit.
b.For horizontal machines, we can provide installation service.
Installation and training are free, but our technician’s charges
of freight tickets, hotels and food etc are on your account.
