Features of the baler
1. Hydraulic drive, compact design, great sealing;
2. Customized press box size and bale size;
3. Bale discharging ways include turn-out, side-push out and
forward-out;
4. Designed with quick unit that can improve work efficiency
substantially;
5. Famous motor, hydraulic system, oil cylinder, piston pump,
electrical components;
6. Blades: our baler can compressing machinery scrap iron aluminum
metal baler with the knife, it can cut the long size material when
compressing, so it very goog for the long steel wire and big size
material.
Structure and composition
It is composed of main frame system, hydraulic system and auxiliary
components.
1. Main frame system: high-quality thick steel plate with
gas-shielded welding casts a solid frame. Advanced mechanical
design makes the equipment durable.
2. Hydraulic system: Imported parts are used for key components
such as hydraulic pump, solenoid valve and hydraulic cylinder oil
seal, which make the packing pressure high, fast speed, durable and
low noise.
3. Electronic control system (optional): original domestic
electrical control, travel switch, button, guarantee quality.
Product Details
| Product Name: | Hydraulic Metal Baler |
| Bale discharging mode: | Manual pick-up |
| Operation type: | Optional Manual or PLC control |
| Material / Metal Processed: | Brass / Copper, ALLOY, Aluminum, Carbon Steel, Stainless Steel |
| Application: | Scrap Metal Recycling |
| Power type: | Hydraulic |
| Key Selling Points: | Easy to Operate or Long Service Life |
| Applicable Industries: | Steel mills, recycling and processing industries |
Technical Parameter
| Model | Main Cyl.Force
(TON) | Press Box Size
(MM) | Bale Size
(MM) | Bale Weight
(KG) |
| Y81-125 | 125 | 1200*700*600 | 300*300 | 50-70 |
| Y81-160 | 160 | 1600*1000*800 | 400*400 | 100-150 |
| Y81-200 | 200 | 1600*1000*800 | 260/300 Octagonal | 50-100 |
| Y81-250 | 250 | 2000*1750*1000 | 500*500 | 250-450 |
| Y81-315 | 315 | 3000*2500*1200 | 500*500/600*600 | 400-1200 |
| Y81-400 | 400 | 3000*2500*1200 | 600*600/700*700 | 800-1300 |
| Y81-500 | 500 | 3500*3000*1200 | 600*600/700*700 | 900-1500 |
| Y81-630 | 630 | 3500/4000*3000*1300 | 600*600/700*700 | 1100-1700 |
| Y81-800 | 800 | 3500/4000*3000*1300 | 600*600/700*700 | 1200-1800 |
| Y81-1000 | 1000 | 3500/4000*3000*1300 | 600*600/700*700 | 1300-1900 |
| Y81K-1500 | 1500 | 3500-3000*1400 | 700*700 | 1400-2100 |
The parameters in the above table are for reference only.
Application

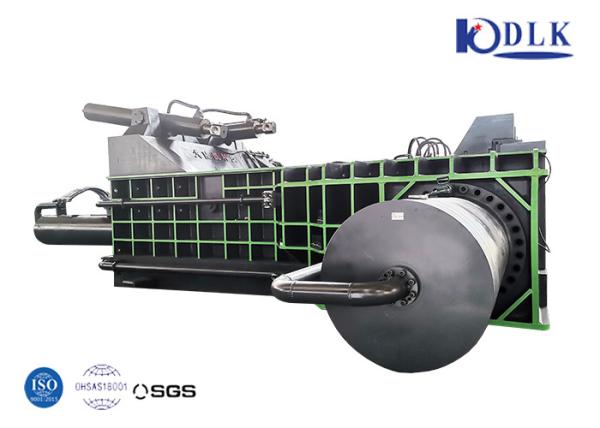

The baler Can Compressing Machinery Scrap Iron Aluminum Metal Baler
is used to compress scrap metal(steel, copper, aluminum,stainless
steel, etc)into metal block or metal bale. The purpose is to save
the transportation cost or reduce the raw material loss when
smelting.
