Product Description

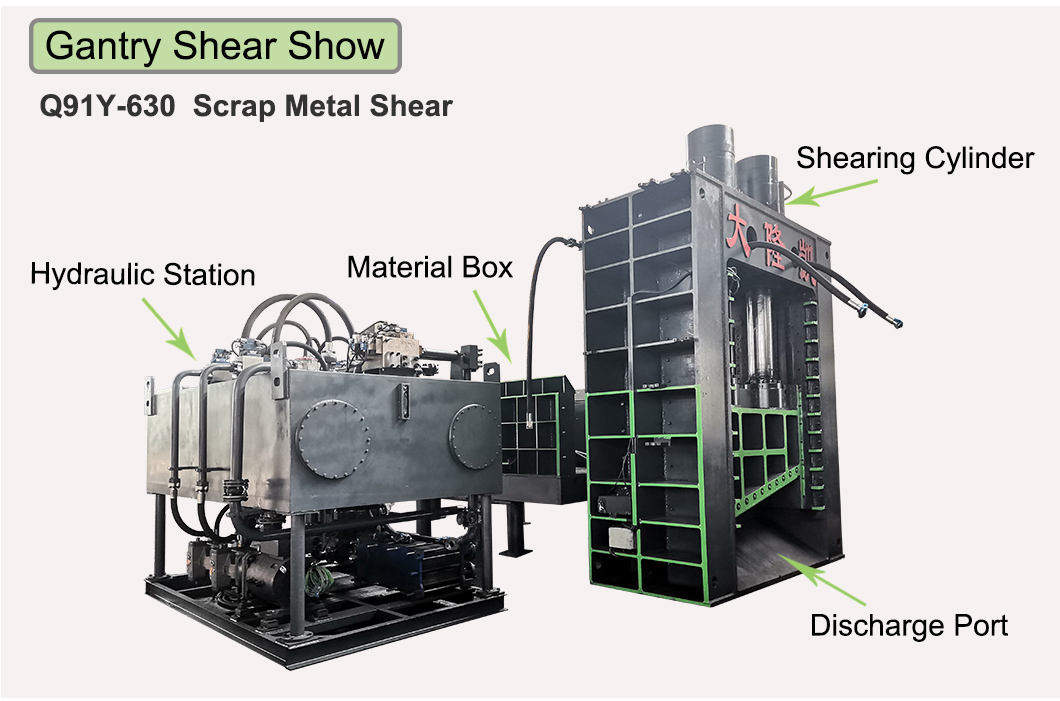

Q91y-630 Hydraulic Gantry shearing machine is mainly used to
compress, pack and cut all kinds of solid waste iron, heavy waste,
light and thin waste steel, steel bars, metal blocks, scrap car
shell, large light metal structural parts, profiles made of steel,
waste steel for production and living, all kinds of plastic
non-ferrous metals (stainless steel, aluminum alloy, copper, etc.)
into the applicable specifications of furnace charge. It is a
rolling mill and non-ferrous metal smelting industry Ideal
equipment for precision casting industry and raw material
factories.
Features of the metal shear
1. Hydraulic drive, reliable safety performance and convenient
operation.
2. Working blade length: 800mm, 1000mm, 1200mm, 1500mm; the shear
force is 6 grades from 200t to 1250t,suitable for users with
different scales and requirements.
3. Foot screws are not required for installation, and diesel engine
can be used as power in places withoutpower supply.
Technical parameters:
| Model | Max.Cutting Force (ton) | Press Box Size (mm) | Blade Length (mm) | Production Rate (t/h) | Cutting Frequency (times/min) | Power (kw) |
| Q91Y-400 | 400 | 6300*1300*500 | 1400 | 4-7 | 2-4 | 90 |
| Q91Y-500 | 500 | 6000*1500*700 | 1600 | 5-8 | 2-4 | 110 |
| Q91Y-630 | 630 | 8000*1700*1200 | 1800 | 12-15 | 2-4 | 150 |
| Q91Y-800 | 800 | 8000*1900*1200 | 2000 | 15-25 | 2-4 | 225 |
| Q91Y-1000 | 1000 | 8000*2000*1200 | 2500/2100 | 18-25 | 2-4 | 170 |
| Q91Y-1250 | 1250 | 8000*2400*1200 | 2500 | 20-28 | 2-4 | 300 |
Application
Heavy-duty hydraulic shear is suitable for metal recycling
processing plant, scrap car dismantling yard and recycling industry
to cut off various metal structures such as color steel tile,
bicycle frame, motorcycle frame, scrap car iron sheet, hydraulic
oil barrel, refrigerator iron sheet, TV shell, angle steel, channel
steel, small pressing block, etc. in cold state, and process them
into qualified furnace materials.
Factory
Jiangsu Dalongkai Technology Co., Ltd. has been a trusted name in
the waste recycling equipment industry for over a decade as a
dedicated Chinese manufacturer of scrap metal recycling equipment,
our flagship products includethe shear baler, scrap baler, scrap
shear, and recycling crane.
In addition to scrap metal processing equipment, we also supply
horizontal baler and vertical baler for compacting plastic, paper,
cardboard, straw, textile and more types of wastes.
Our DLK brand has received critical acclaim both domestically and
overseas. As a trusted waste recycling equipment manufacturer, we
have successfully passed the certification of both the TUV and the
ISO9001 Quality Management System. We are currently in the process
of obtaining the approval of European standards such as CE and UL.
Our team
Exhibition
Certification
FAQ
1,Q:Can I add my logo on the machines?
A: Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
2,Q:How can i get the after-service?
A: We will send you the spare parts by free if the problems caused
by us.
If it is the men-made problems,we also send the spare parts,but you
should pay.
3,Q:Do you have inspection procedures for machines?
A:100% self-inspection before packing
4,Q:Can I have a visit to your factory before the order?
A:Sure,welcome to visit our factory.
Here is our factory address:No.29, Panlongshan Road, Jiangyin City,
Jiangsu Province, China.
5,Q: Can we order one set machine?
A:Yes, you can.
